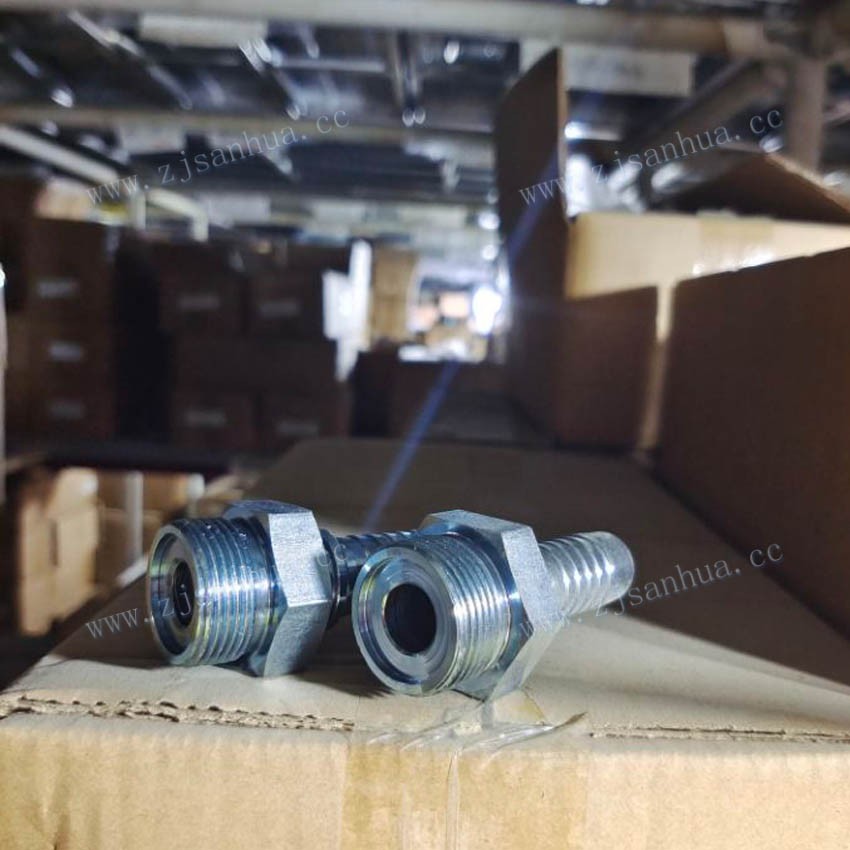

O-ring METRIC MALE FLAT SEAL
| 代号 | 螺纹E | 软管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| PART NO. | THREAD E | 公称内径DN | 标号DASH | A | C | S1 | |
| 10311-12-04 | M12X1.25 | 6 | 4 | 22.5 | 10 | 14 | |
| 10311-12-04D | M12X1.5 | 6 | 4 | 23.5 | 11 | 14 | |
| 10311-14-04 | M14X1.5 | 6 | 4 | 23.5 | 11 | 14 | |
| 10311-16-04 | M16X1.5 | 6 | 4 | 23.5 | 11 | 17 | |
| 10311-16-05 | M16X1.5 | 8 | 5 | 23.5 | 11 | 17 | |
| 10311-16-06 | M16X1.5 | 10 | 6 | 23.5 | 11 | 17 | |
| 10311-18-06 | M18X1.5 | 10 | 6 | 23.5 | 11 | 19 | |
| 10311-22-05 | M22X1.5 | 8 | 5 | 27 | 12 | 24 | |
| 10311-22-06 | M22X1.5 | 10 | 6 | 27 | 12 | 24 | |
| 10311-22-08 | M22X1.5 | 12 | 8 | 27 | 12 | 24 | |
| 10311-27-10 | M27X1.5 | 16 | 10 | 31.5 | 13 | 30 | |
| 10311-30-12 | M30X1.5 | 20 | 12 | 33.5 | 14 | 32 | |
| 10311-36-12 | M36X2 | 20 | 12 | 35.5 | 16 | 38 | |
| 10311-36-14 | M36X2 | 22 | 14 | 35.5 | 16 | 38 | |
| 10311-39-16 | M39X2 | 25 | 16 | 39 | 16 | 41 | |
| 10311-45-20 | M45X2 | 32 | 20 | 44.5 | 20 | 46 | |
| 10311-52-24 | M52X2 | 40 | 24 | 47.5 | 22 | 55 | |
| 10311-64-32 | M64X2 | 50 | 32 | 52.5 | 27 |
65 |
|
