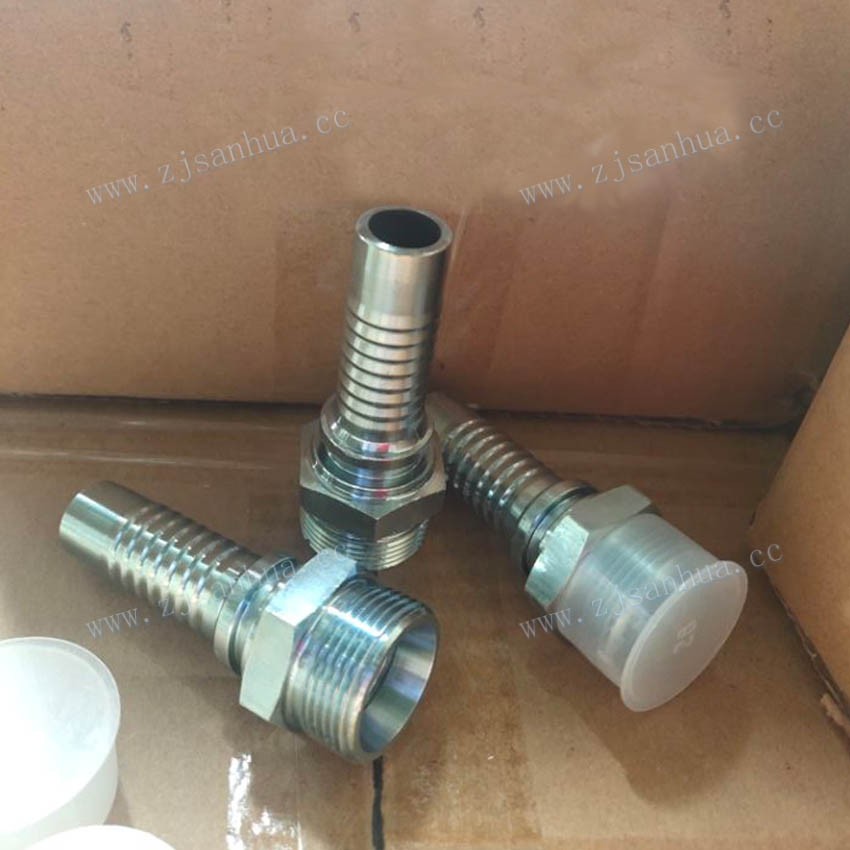

Metric male 24°Cone O-ring L.T.
| 代号 | 螺纹E | 软管 HOSE BORE | 尺寸 DIMENSIONS | ||||
| PART NO. | THREAD E | 公称内径DN | 标号DASH | A | C | S1 | |
| 10411-12-04 | M12X1.5 | 6 | 4 | 20.5 | 10 | 12 | |
| 10411-14-04 | M14X1.5 | 6 | 4 | 20.5 | 10 | 14 | |
| 10411-14-05 | M14X1.5 | 8 | 5 | 21.5 | 10 | 14 | |
| 10411-16-04 | M16X1.5 | 6 | 4 | 22.5 | 11 | 17 | |
| 10411-16-05 | M16X1.5 | 8 | 5 | 22.5 | 11 | 17 | |
| 10411-16-06 | M16X1.5 | 10 | 6 | 22.5 | 11 | 17 | |
| 10411-18-05 | M18X1.5 | 8 | 5 | 23.5 | 11 | 19 | |
| 10411-18-06 | M18X1.5 | 10 | 6 | 22.5 | 11 | 19 | |
| 10411-22-06 | M22X1.5 | 10 | 6 | 24.5 | 12 | 24 | |
| 10411-22-08 | M22X1.5 | 12 | 8 | 26 | 12 | 24 | |
| 10411-26-08 | M26X1.5 | 12 | 8 | 26.5 | 12 | 27 | |
| 10411-26-10 | M26X1.5 | 16 | 10 | 26.5 | 12 | 27 | |
| 10411-27-10 | M27X1.5 | 16 | 10 | 29.5 | 14 | 30 | |
| 10411-30-10 | M30X2 | 16 | 10 | 29.5 | 14 | 32 | |
| 10411-30-12 | M30X2 | 20 | 12 | 30 | 14 | 32 | |
| 10411-36-16 | M36X2 | 25 | 16 | 31.5 | 14 | 38 | |
| 10411-45-20 | M45X2 | 32 | 20 | 37 | 16 | 46 | |
| 10411-52-24 | M52X2 | 40 | 24 | 38 | 16 |
