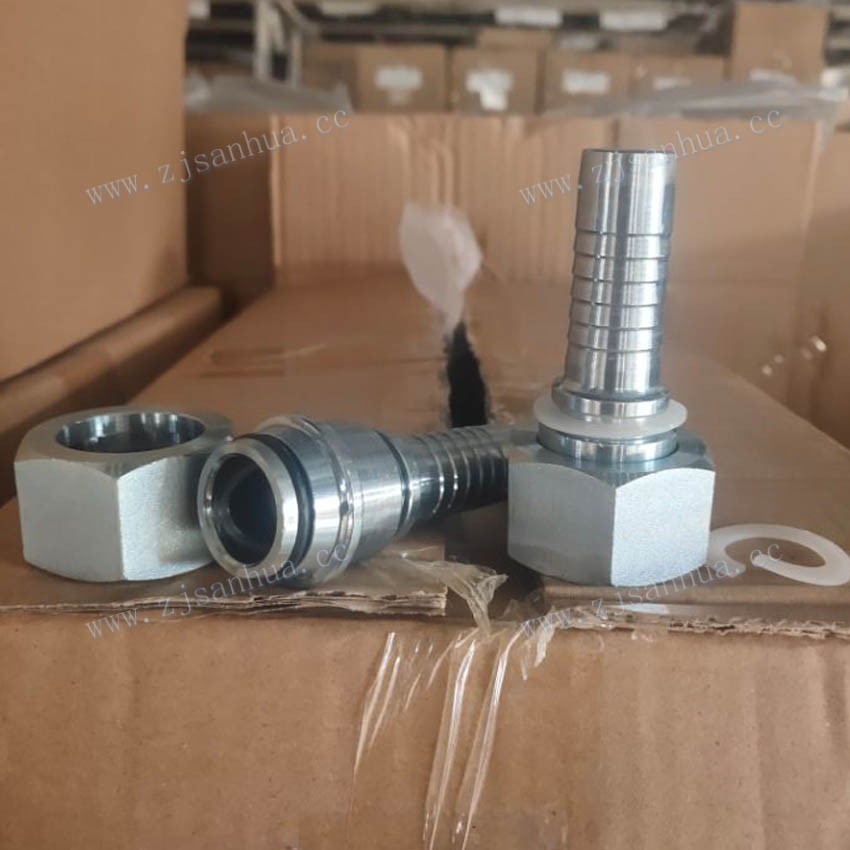

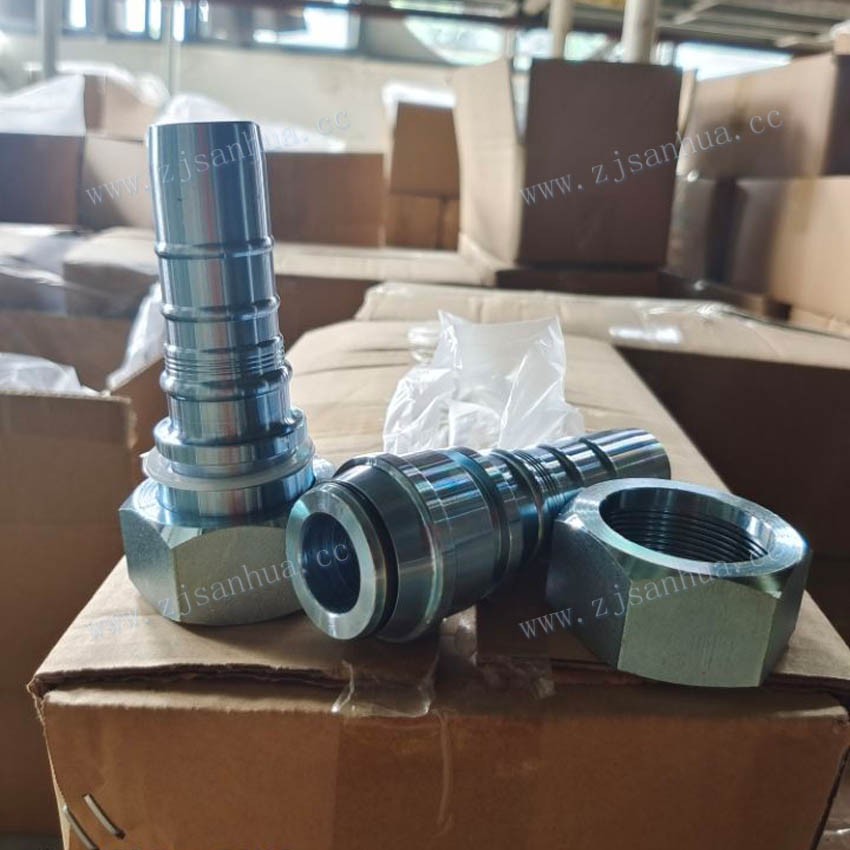

20511 Metric female 24°Cone O-ring H.T.
| 代号 | 螺纹E THREAD E | O形圈 | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||
| PART NO. | O RING | 公称内径DN | 标号DASH | A | C | S2 | |
| 20511-14-04W | M16X1.5 | O04.5X1.5 | 6 | 4 | 23 | 1.1 | 17 |
| 20511-16-04T | M16X1.5 | O06.5X1.5 | 6 | 4 | 21 | 1.5 | 19 |
| 20511-16-05W | M16X1.5 | O06.5X1.5 | 8 | 5 | 23 | 1.5 | 19 |
| 20511-18-04T | M18X1.5 | O08.0X1.5 | 6 | 4 | 25.5 | 1.5 | 22 |
| 20511-18-06T | M18X1.5 | O08.0X1.5 | 10 | 6 | 26 | 1.5 | 22 |
| 20511-20-06T | M20X1.5 | O10.0X1.5 | 10 | 6 | 28.5 | 2.5 | 24 |
| 20511-20-08W | M20X1.5 | O10.0X1.5 | 12 | 8 | 26 | 2.5 | 24 |
| 20511-22-06T | M22X1.5 | O11.0X2.0 | 10 | 6 | 26.5 | 2.5 | 27 |
| 20511-22-08T | M22X1.5 | O11.0X2.0 | 12 | 8 | 28 | 2.5 | 27 |
| 20511-24-06T | M24X1.5 | O13.0X2.0 | 10 | 6 | 27 | 3 | 30 |
| 20511-24-08T | M24X1.5 | O13.0X2.0 | 12 | 8 | 27.5 | 3 | 30 |
| 20511-30-10T | M30X2 | O16.3X2.4 | 16 | 10 | 33 | 2.5 | 36 |
| 20511-30-12T | M30X2 | O16.3X2.4 | 20 | 12 | 35 | 2.5 | 36 |
| 20511-36-12T | M36X2 | O20.3X2.4 | 20 | 12 | 35 | 3 | 46 |
| 20511-36-14T | M36X2 | O20.3X2.4 | 22 | 14 | 34 | 3 | 46 |
| 20511-36-16W | M36X2 | O20.3X2.4 | 25 | 16 | 34 | 3 | 46 |
| 20511-42-12T | M42X2 | O25.3X2.4 | 20 | 12 | 37.5 | 4 | 50 |
| 20511-42-16T | M42X2 | O25.3X2.4 | 25 | 16 | 38.5 | 4 | 50 |
| 20511-52-20T | M52X2 | O33.3X2.4 | 32 | 20 | 41.5 | 4.5 | 60 |
| 20511-52-24T | M52X2 | O33.3X2.4 | 40 | 24 | 41.5 | 4.5 |
60 |
