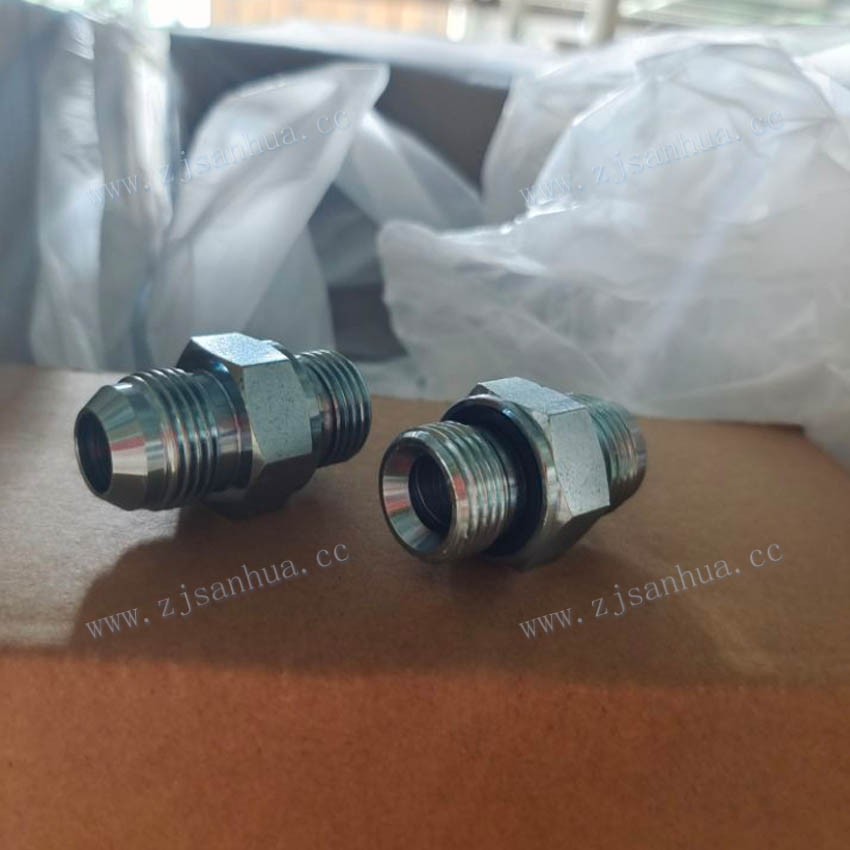

JIC MALE 74° CONE / BSP MALE CAPTIVE SEAL

代号

PART NO.

螺 纹  THREAD

胶垫 CAPTIVE

尺 寸  DIMENSIONS

E

F

F端

A

B

L

S1

1JB-04-02WD

7/16″×20

G1/8″×28

WD-B02

14

8

29.5

14

1JB-04WD

7/16″×20

G1/4″×19

WD-B04

14

12

34

19

1JB-04-06WD

7/16″×20

G3/8″×19

WD-B06

14

12

34.5

22

1JB-04-08WD

7/16″×20

G1/2″×14

WD-B08

14

14

41

27

1JB-05-04WD

1/2″×20

G1/4″×19

WD-B04

14

12

34

19

1JB-05-06W

1/2″×20

G3/8″×19

WD-B06

14

12

34.5

22

1JB-06-02WD

9/16″×18

G1/8″×28

WD-B02

14.1

8

29.5

17

1JB-06-04WD

9/16″×18

G1/4″×19

WD-B04

14.1

12

34

19

1JB-06WD

9/16″×18

G3/8″×19

WD-B06

14.1

12

34.5

22

1JB-06-08WD

9/16″×18

G1/2″×14

WD-B08

14.1

14

41

27

1JB-08-04WD

3/4″×16

G1/4″×19

WD-B04

16.7

12

37

22

1JB-08-06WD

3/4″×16

G3/8″×19

WD-B06

16.7

12

37.5

22

1JB-08WD

3/4″×16

G1/2″×14

WD-B08

16.7

14

43.5

27

1JB-10-08WD

7/8″×14

G1/2″×14

WD-B08

19.3

14

46.5

27

1JB-10-12WD

7/8″×14

G3/4″×14

WD-B12

19.3

16

47.5

32

1JB-12-08WD

1.1/16″×12

G1/2″×14

WD-B08

21.9

14

48.5

30

1JB-12WD

1.1/16″×12

G3/4″×14

WD-B12

21.9

16

50

32

1JB-12-16WD

1.1/16″×12

G1″×11

WD-B16

21.9

18

56

41

1JB-16-12WD

1.5/16″×12

G3/4″×14

WD-B12

23.1

16
