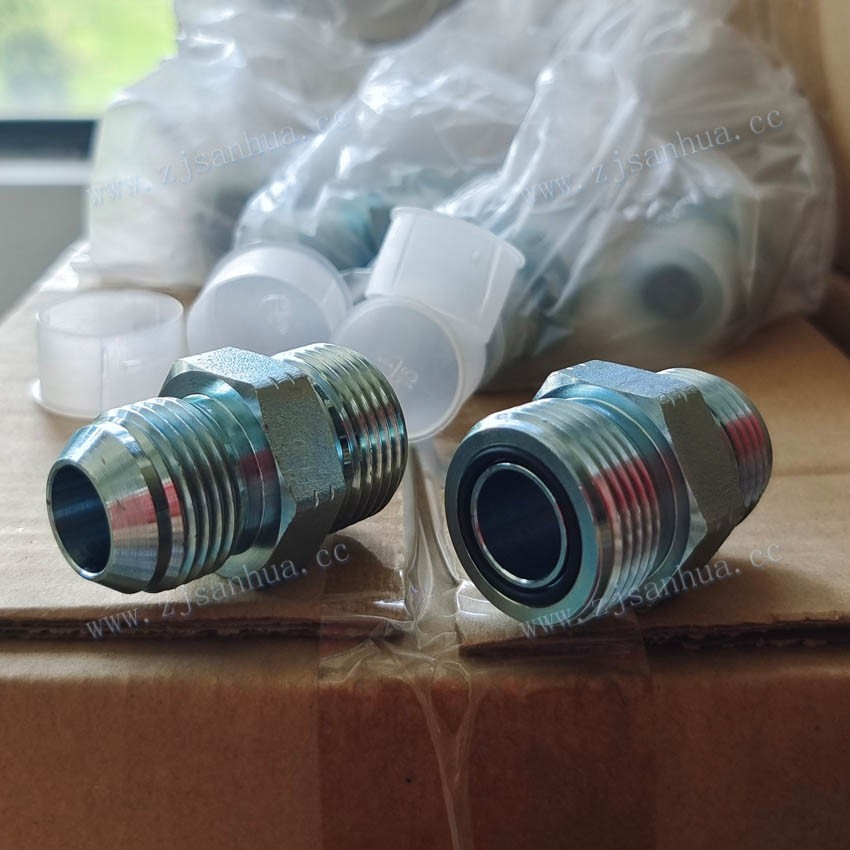

JIC MALE 74° CONE / ORFS MALE

代号

PART NO.

螺 纹  THREAD

O形圈  O-RING

尺 寸  DIMENSIONS

E

F

F端

A

B

L

S1

1JF-04

7/16″×20

9/16″×18

O011

14

9.8

29.5

17

1JF-05-04

1/2″×20

9/16″×18

O011

14

9.8

29.5

17

1JF-05-06

1/2″×20

11/16″×16

O012

14

11.2

31.5

19

1JF-06-04

9/16″×18

9/16″×18

O011

14.1

9.8

30

17

1JF-06

9/16″×18

11/16″×16

O012

14.1

11.2

31

19

1JF-08-06

3/4″×16

11/16″×16

O012

16.7

11.2

36

22

1JF-08

3/4″×16

13/16″×16

O014

16.7

12.8

37.5

22

1JF-10-08

7/8″×14

13/16″×16

O014

19.3

12.8

40

24

1JF-10

7/8″×14

1″×14

O016

19.3

15.5

44.5

27

1JF-12-10

1.1/16″×12

1″×14

O016

21.9

15.8

47.5

30

1JF-12

1.1/16″×12

1.3/16″×12

O018

21.9

17

50

32

1JF-16-12

1.5/16″×12

1.3/16″×12

O018

23.1

17

51

36

1JF-16

1.5/16″×12

1.7/16″×12

O021

23.1

17.5

51.5

38

1JF-20-16

1.5/8″×12

1.7/16″×12

O021

24.3

17.5

54.5

46

1JF-20

1.5/8″×12

1.11/16″×12

O025

24.3

17.5

54.5

46

1JF-24-20

1.7/8″×12

1.11/16″×12

O025

27.5

17.5

60

50

1JF-24

1.7/8″×12

2×12

O029

27.5

17.5

60

55
