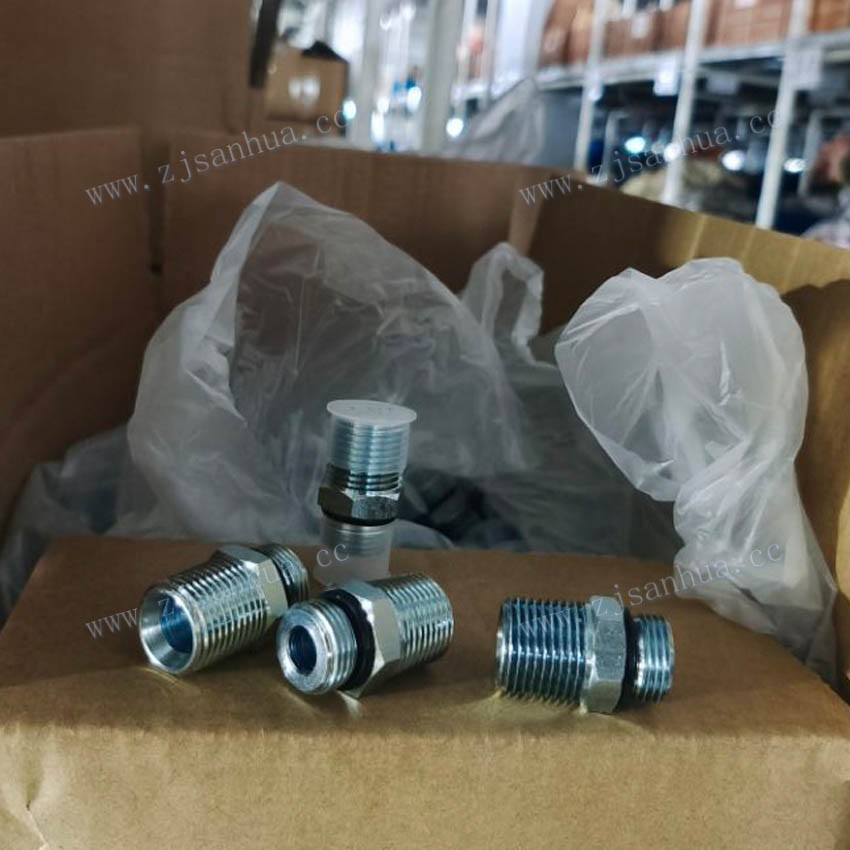

NPT MALE / SAE O-RING BOSS L-SERIES

代号

PART NO.

螺 纹  THREAD

O形圈 O-RING

尺 寸  DIMENSIONS

E

F

F端

A

B

L

S1

1NO-04

Z1/4″×18

7/16″×20

O904

15

9.1

30

14

1NO-04-06

Z1/4″×18

9/16″×18

O906

15

9.9

31

17

1NO-06-04

Z3/8″×18

7/16″×20

O904

16

9.1

31

19

1NO-06

Z3/8″×18

9/16″×18

O906

16

9.9

32

19

1NO-06-08

Z3/8″×18

3/4″×16

O908

16

11.1

35.5

22

1NO-08

Z1/2″×14

3/4″×16

O908

19.5

11.1

38.5

22

1NO-08-10

Z1/2″×14

7/8″×14

O910

19.5

12.7

42

27

1NO-08-12

Z1/2″×14

1.1/16″×12

O912

19.5

15.1

45.5

32

1NO-12-10

Z3/4″×14

7/8″×14

O910

19.5

12.7

43

30

1NO-12

Z3/4″×14

1.1/16″×12

O912

19.5

15.1

45.5

32

1NO-16

Z1″×11.5

1.5/16″×12

O916

25.5

15.1

51.5

38

1NO-20-16

Z1.1/4″×11.5

1.5/16″×12

O916

26.5

15.1

54.5

46

1NO-20

Z1.1/4″×11.5

1.5/8″×12

O920

26.5

15.1

56.5

50

1NO-24

Z1.1/2″×11.5

1.7/8″×12

O924

27.5

15.1

57.5

55
