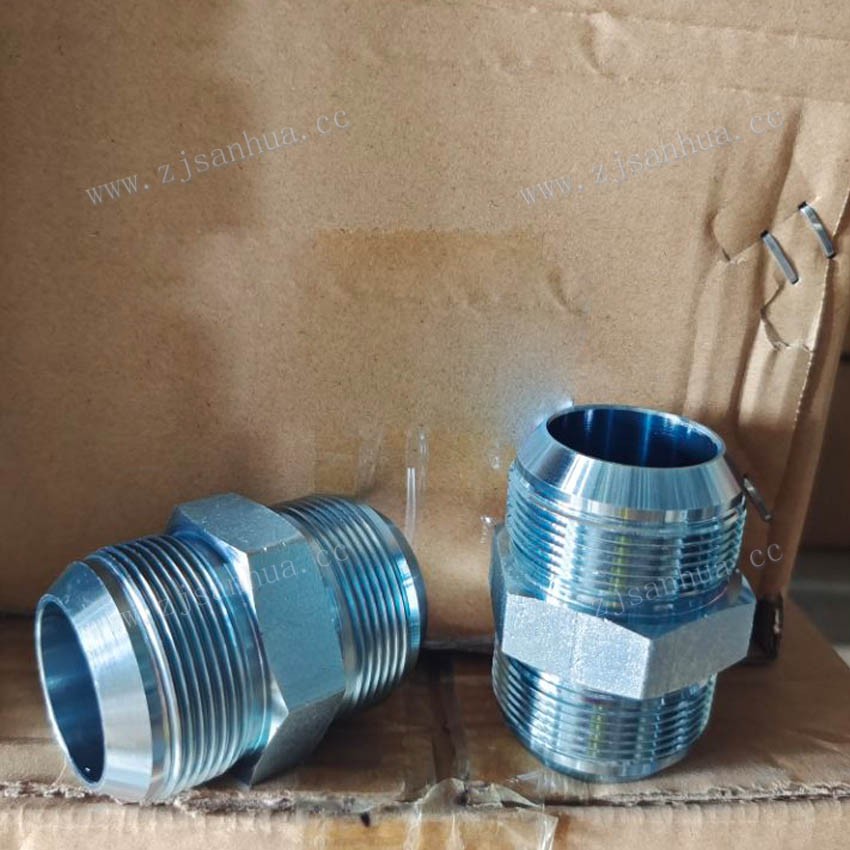

JIC MALE 74° CONE

代号

PART NO.

螺 纹  THREAD

尺 寸  DIMENSIONS

E

F

A

B

L

S1

1J-02

5/16″×24

5/16″×24

11.4

11.4

29

12

1J-02-03

5/16″×24

3/8″×24

11.4

12.2

29.5

12

1J-03

3/8″×24

3/8″×24

12.2

12.2

30.5

12

1J-04

7/16″×20

7/16″×20

14

14

34

12

1J-04-05

7/16″×20

1/2″×20

14

14

34

14

1J-04-06

7/16″×20

9/16″×18

14

14.1

34.1

17

1J-04-08

7/16″×20

3/4″×16

14

16.7

38.5

22

1J-05

1/2″×20

1/2″×20

14

14

34

14

1J-05-06

1/2″×20

9/16″×18

14

14.1

34

17

1J-05-08

1/2″×20

3/4″×16

14

16.7

38.5

22

1J-05-10

1/2″×20

7/8″×14

14

19.3

41

24

1J-06

9/16″×18

9/16″×18

14.4

14.1

34.2

17

1J-06-08

9/16″×18

3/4″×16

14.1

16.7

38.5

22

1J-06-10

9/16″×18

7/8″×14

14.1

19.3

41.5

24

1J-06-12

9/16″×18

1.1/16″×12

14.1

21.9

46

30

1J-08

3/4″×16

3/4″×16

16.7

16.7

42

22

1J-08-10

3/4″×16

7/8″×14

16.7

19.3

44

24

1J-08-12

3/4″×16

1.1/16″×12

16.7

21.9

48.5

30
