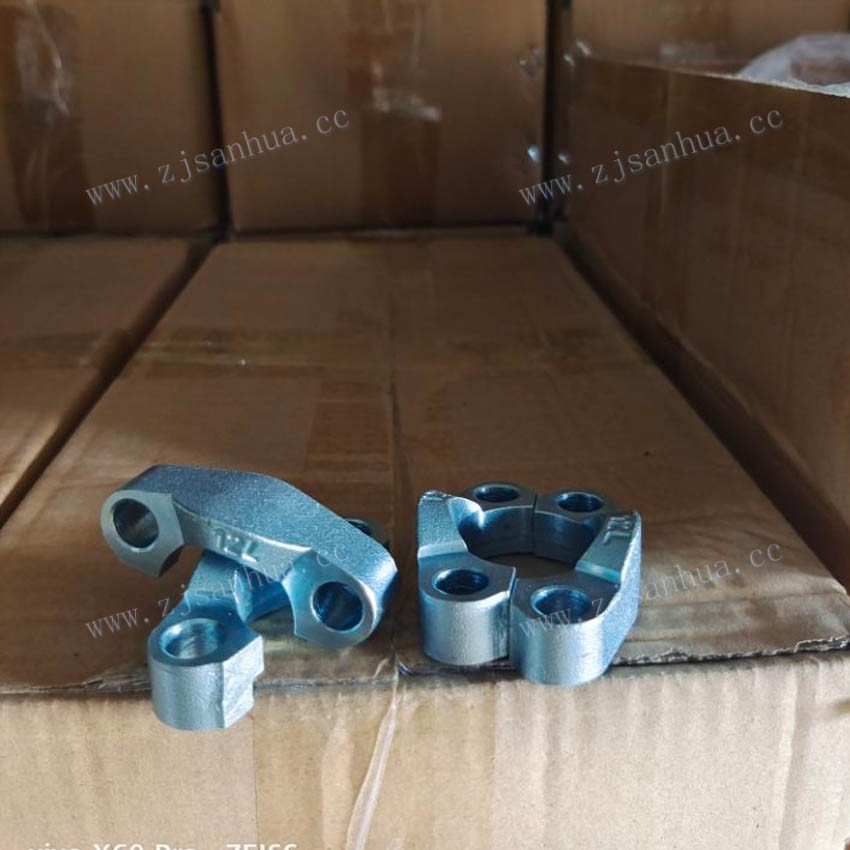

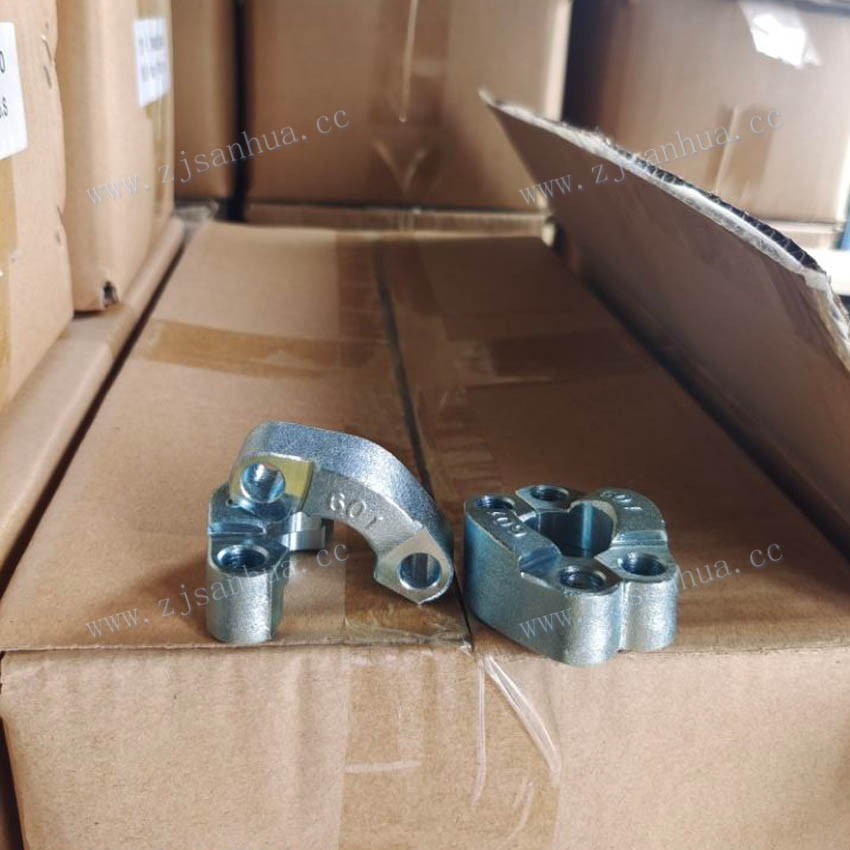

SAE SPLIT FLANGE CLAMPS 3000PSI

PART NO.

FLANGE SIZE

DIMENSIONS

A

B

d

h

M

N

3000PSI

FL-08

1/2″

54

45.6

9

6.2

38.1

17.5

M8×25

FL-12

3/4″

65

51.8

11

6.2

47.6

22.2

M10×30

FL-16

1″

70

58.4

11

7.5

52.4

26.2

M10×30

FL-20

1.1/4″

79

72.6

11

7.5

58.7

30.2

M10×30

FL-24

1.1/2″

94

82.2

13.5

7.5

69.9

35.7

M12×35

FL-32

2″

102

96.4

13.5

9

77.8

42.9

M12×35

FL-40

2.1/2″

114

108.2

13.5

9

88.9

50.8

M12×40

FL-48

3″

135

130.6

17.5

9

106.4

61.9

M16×50

6000PSI

FS-08

1/2″

56

47.2

9

7.2

40.5

18.2

M8×30

FS-12

3/4″

71

60

11

8.2

50.8

23.8

M10×35

FS-16

1″

81

69.6

13.5

9

57.2

27.8

M12×45

FS-20

1.1/4″

95

77.2

13.5

9.8

66.6

31.8

M12×45

FS-24

1.1/2″

113

95

17.5

12

79.3

36.5

M16×55

FS-32

2″

133

113.8

22

12

96.8

44.5

M20×70
