  • metric male 74°cone seat

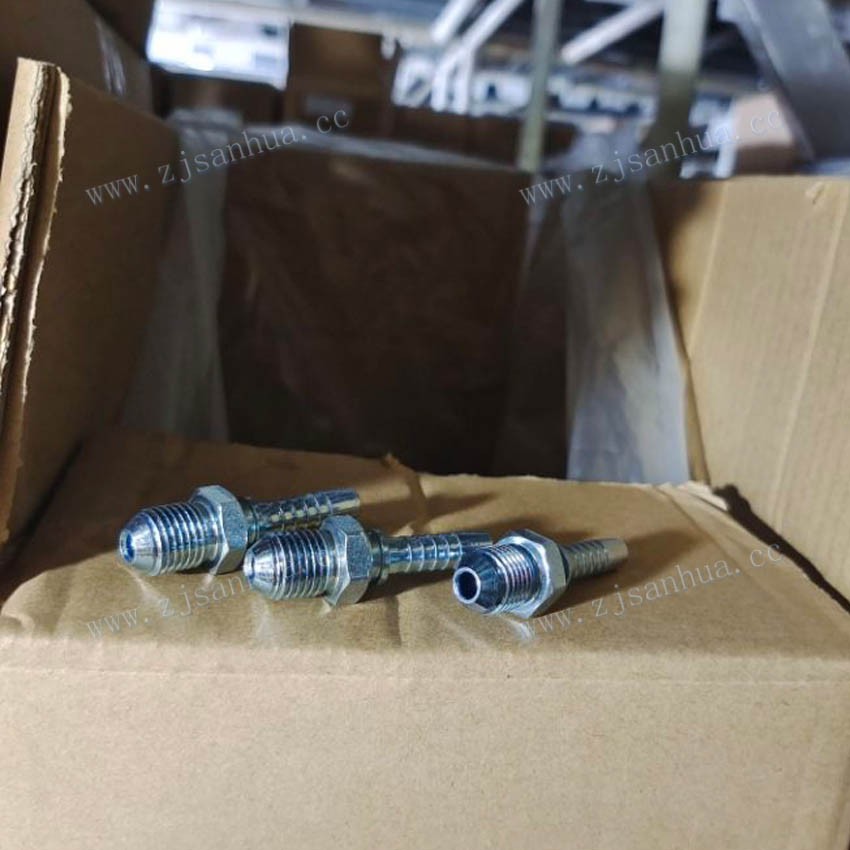

metric male 74°cone seat

10711

代号 螺纹E 软管 HOSE BORE 尺寸 DIMENSIONS
PART NO. THREAD E 公称内径DN 标号DASH A C S1
10711-10-02 M10X1 4 2 23 12.5 14
10711-10-03 M10X1 5 3 23 12.5 14
10711-12-03 M12X1.5 5 3 26.5 15.7 14
10711-12-03C M12X1.25 5 3 24.5 14 14
10711-14-04 M14X1.5 6 4 29.5 17 17
10711-14-06 M14X1.5 10 6 30.5 18 17
10711-16-05 M16X1.5 8 5 30.5 18 17
10711-16-06 M16X1.5 10 6 30.5 18 17
10711-18-06 M18X1.5 10 6 30.5 18 19
10711-22-08 M22X1.5 12 8 35 19.5 24
10711-24-08 M24X1.5 12 8 35.5 20 27
10711-27-10 M27X1.5 16 10 38 20 30
10711-30-12 M30X1.5 20 12 42.5 23 32
10711-30-12E M30X2 20 12 45.5 26 32
10711-33-12 M33X2 20 12 46 26 36
10711-36-14 M36X2 22 14 45 26 38
10711-39-16 M39X2 25 16 48 27.5 41
10711-42-20 M42X2 32 20 52 28.5 46
10711-45-20 M45X2 32 20 52 28.5 46
