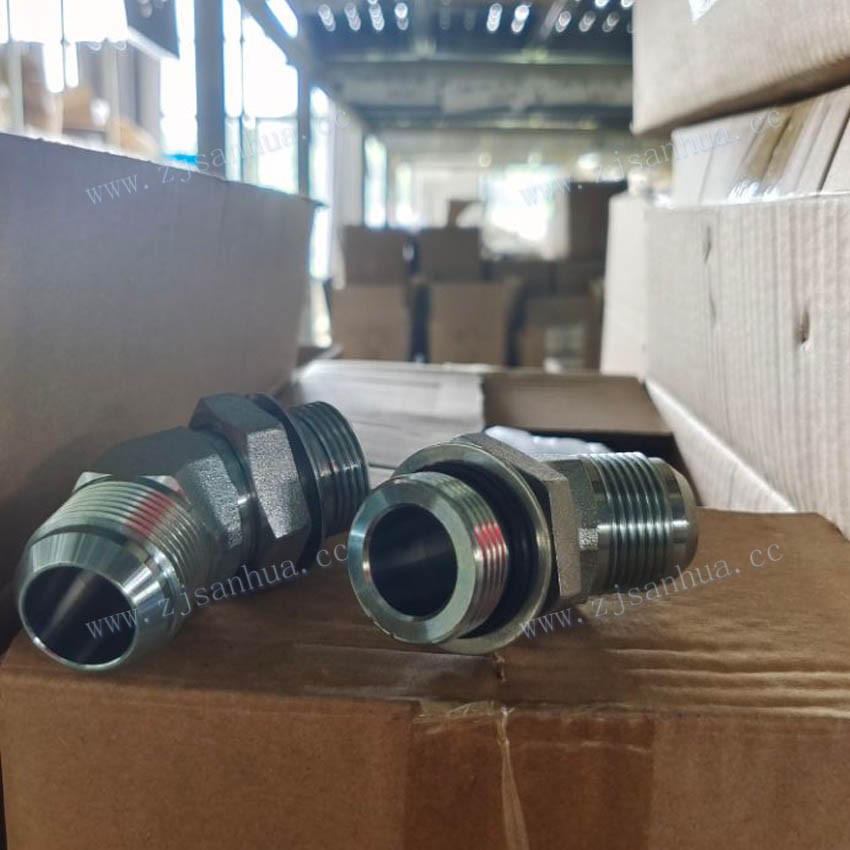

JIC MALE 74° CONE / SAE O-RING BOSS L-SERIES

代号

PART NO.

螺 纹  THREAD

O形圈  O-RING

尺 寸  DIMENSIONS

E

F

F端

A

B

L

S1

1JO-04-02

7/16″×20

5/16″×24

O902

14

7.54

27.5

14

1JO-04-03

7/16″×20

3/8″×24

O903

14

7.54

27.5

14

1JO-04

7/16″×20

7/16″×20

O904

14

9.14

29

14

1JO-04-05

7/16″×20

1/2″×20

O905

14

9.14

29

17

1JO-04-06

7/16″×20

9/16″×18

O906

14

9.93

30

17

1JO-04-08

7/16″×20

3/4″×16

O908

14

11.13

33

22

1JO-05

1/2″×20

1/2″×20

O905

14

9.14

29

17

1JO-05-04

1/2″×20

7/16″×20

O904

14

9.14

29

14

1JO-05-06

1/2″×20

9/16″×18

O906

14

9.93

30

17

1JO-05-08

1/2″×20

3/4″×16

O908

14

11.13

33

22

1JO-06

9/16″×18

9/16″×18

O906

14.1

9.93

30

17

1JO-06-04

9/16″×18

7/16″×20

O904

14.1

9.14

29

17

1JO-06-05

9/16″×18

1/2″×20

O905

14.1

9.14

29.5

17

1JO-06-08

9/16″×18

3/4″×16

O908

14.1

11.13

33

22

1JO-06-10

9/16″×18

7/8″×14

O910

14.1

12.7

37

27

1JO-06-12

9/16″×18

1.1/16″×12

O912

14.1

15.09

40

32

1JO-08

3/4″×16

3/4″×16

O908

16.7

11.13

36

22
