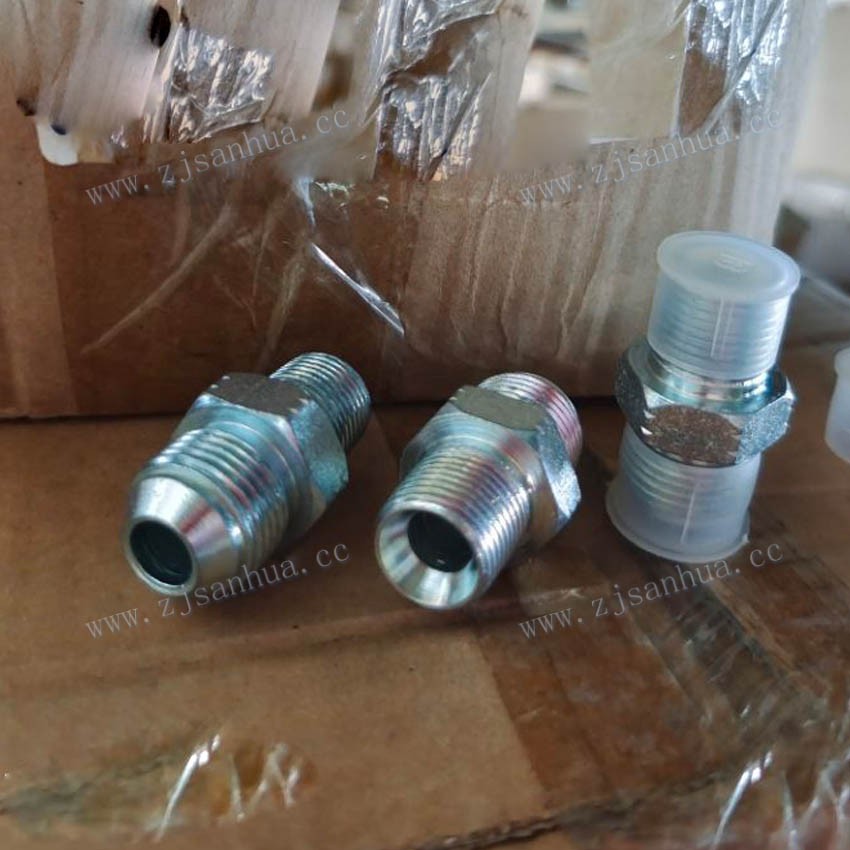

JIC MALE 74° CONE / BSPT MALE

代号

PART NO.

螺 纹  THREAD

尺 寸  DIMENSIONS

E

F

A

B

L

S1

1JT-04-02SP

7/16″×20

R1/8″×28

14

10

30

12

1JT-04SP

7/16″×20

R1/4″×19

14

14.5

34.5

14

1JT-04-06SP

7/16″×20

R3/8″×19

14

15

35

17

1JT-05-02SP

1/2″×20

R1/8″×28

14

10.5

30.5

14

1JT-05-04SP

1/2″×20

R1/4″×19

14

14.5

34

14

1JT-05-06SP

1/2″×20

R3/8″×19

14

15

35

19

1JT-06-02SP

9/16″×18

R1/8″×28

14.1

10.5

30.5

17

1JT-06-04SP

9/16″×18

R1/4″×19

14.1

14.5

34

17

1JT-06SP

9/16″×18

R3/8″×19

14.1

15

34

17

1JT-06-08SP

9/16″×18

R1/2″×14

14.1

20

41

22

1JT-08-06SP

3/4″×16

R3/8″×19

16.7

15

39

22

1JT-08SP

3/4″×16

R1/2″×14

16.7

20

44.5

22

1JT-08-12SP

3/4″×16

R3/4″×14

16.7

20

46

30

1JT-10-06SP

7/8″×14

R3/8″×19

19.3

15

42.5

24

1JT-10-08SP

7/8″×14

R1/2″×14

19.3

20

46.5

24

1JT-10-12SP

7/8″×14

R3/4″×14

19.3

20

48.5

30
