metric female multiseal hydraulic hose fitting

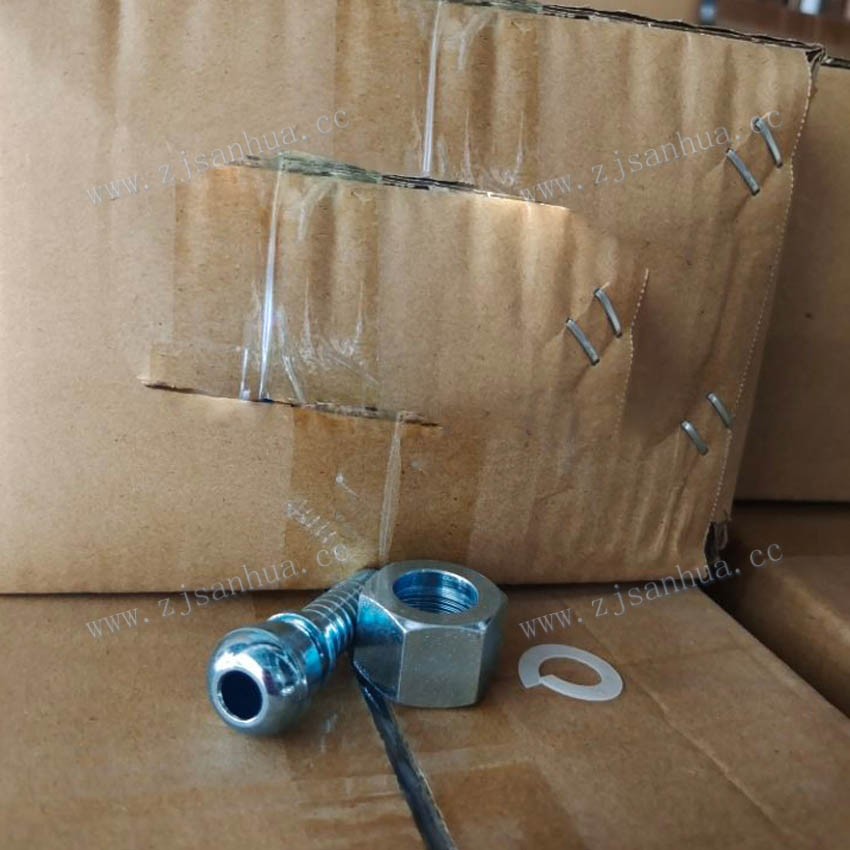

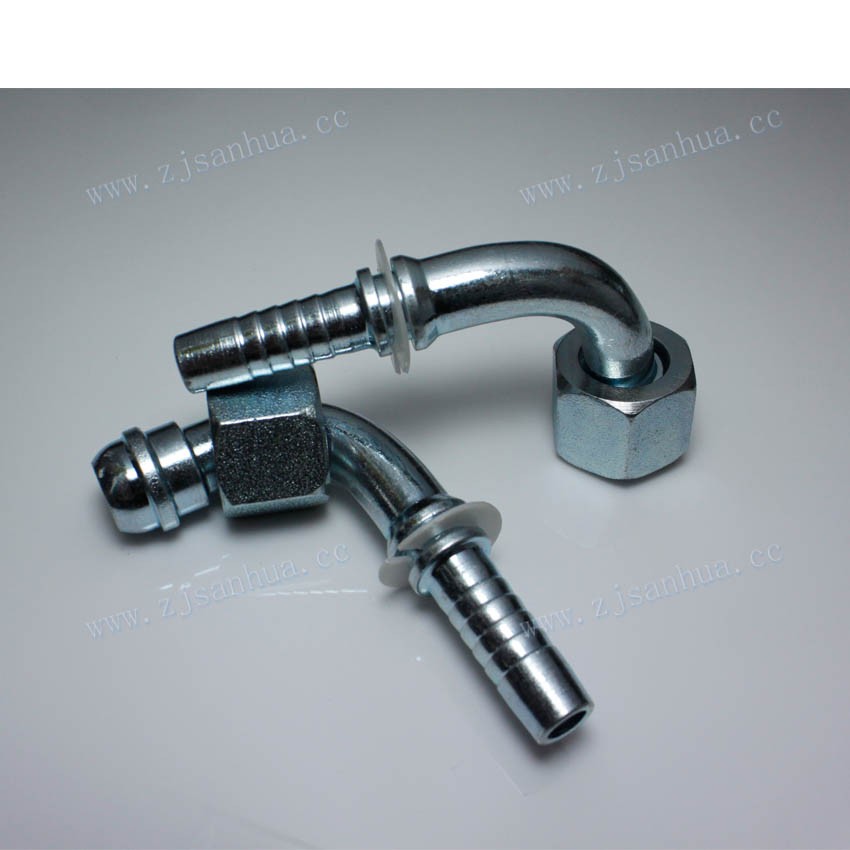

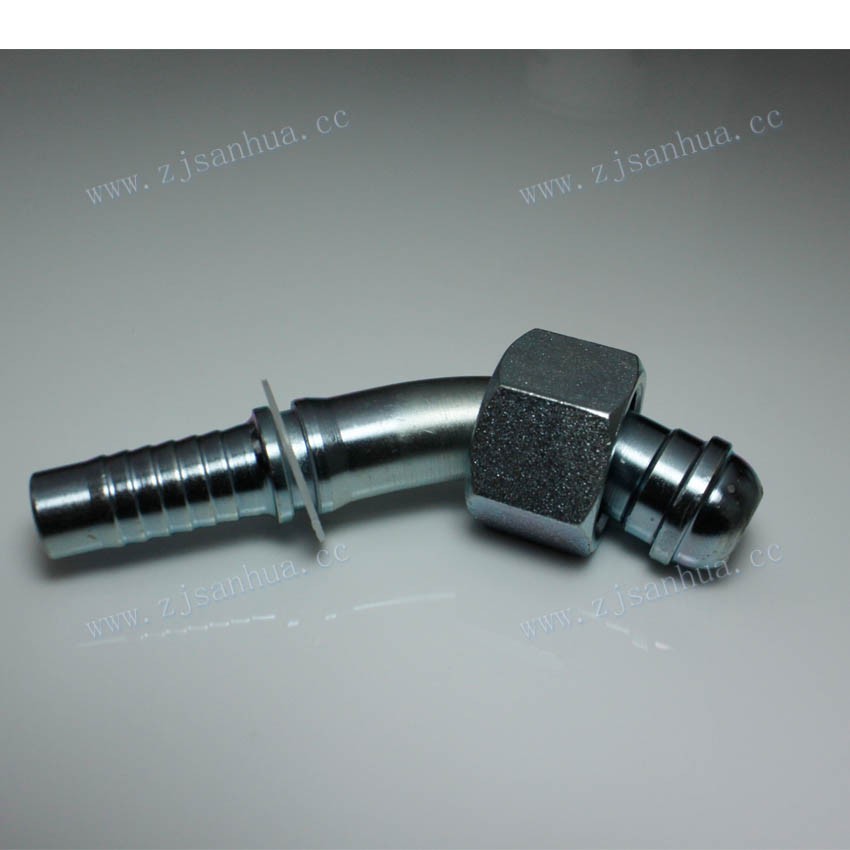

20111 METRIC FEMALE MULTISEAL

代号	螺纹E	软管 HOSE BORE			尺寸 DIMENSIONS
PART NO.	THREAD E	公称内径DN	标号DASH		A	C	S2
20111-10-03	M10X1	5	3		18	2.5	14
20111-10-04	M10X1	6	4		18	2.5	14
20111-12-04	M12X1.5	6	4		18.5	4	17
20111-12-05	M12X1.5	8	5		18.5	4	17
20111-14-04	M14X1.5	6	4		19.5	4.5	19
20111-14-05	M14X1.5	8	5		19.5	4.5	19
20111-16-04	M16X1.5	6	4		19.5	4.5	22
20111-16-05	M16X1.5	8	5		20	4.5	22
20111-16-06	M16X1.5	10	6		20	4.5	22
20111-18-05T	M18X1.5	8	5		21.5	4	24
20111-18-06	M18X1.5	10	6		21.5	4	24
20111-18-08	M18X1.5	12	8		22	4	24
20111-20-06T	M20X1.5	10	6		20.5	5.5	24
20111-20-08	M20X1.5	12	8		23	5.5	27
20111-22-06T	M22X1.5	10	6		21	5	27
20111-22-08	M22X1.5	12	8		23.5	5	27
20111-22-10	M22X1.5	16	10		24	5	27
20111-24-08T	M24X1.5	12	8		22	5.5	30
20111-24-10	M24X1.5	16	10		25.5	5	30
20111-27-08DT	M27X1.5	12	8		23	5.5	32
20111-27-10DT	M27X1.5	16	10		26	5.5	32
20111-27-12D	M27X1.5	20	12		26	5.5	32
20111-27-10T	M27X2	16	10		24	7	32
20111-30-12D	M30X1.5	20	12		26.5	6	36
20111-30-12	M30X2	20	12		26.5	7	36
20111-36-12T	M36X2	20	12		26	7	41
20111-36-14T	M36X2	22	14		26	7	41
20111-39-14T	M39X2	22	14		28.5	7	46
20111-39-16T	M39X2	25	16		29.5	7	46
20111-42-16T	M42X2	25	16		30	8.5	50
20111-45-20T	M45X2	32	20		31.5	8.5	55
20111-52-20T	M52X2	32	20		33	9	60
20111-52-24T	M52X2	40	24		33	9	60
20111-64-32T	M64X2	50	32		35	14	75
