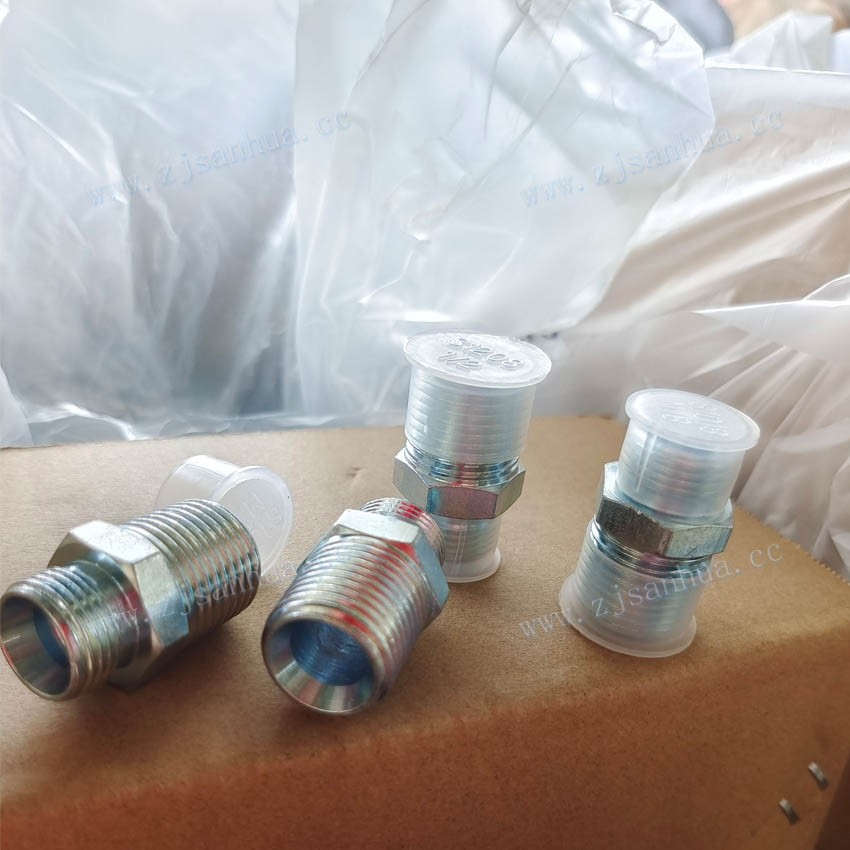

METRIC /NPT MALE ADAPTER

代号

PART NO.

螺 纹  THREAD

管子外径 TUBE O.D.

尺 寸  DIMENSIONS

压力等级

MPa

E

F

D1

I1

L1

S1

S2

1CN-12-02

M12×1.5

Z1/8"×27

6

13.4

28.4

12

14

25

轻系列

L

1CN-12-04

M12×1.5

Z1/4"×18

6

17.2

32.2

17

14

1CN-14-04

M14×1.5

Z1/4"×18

8

17.2

32.2

14

17

1CN-16-04

M16×1.5

Z1/4"×18

10

18.2

33.2

17

19

1CN-16-06

M16×1.5

Z3/8"×18

10

19.9

53.0

19

19

1CN-18-04

M18×1.5

Z1/4"×18

12

19.2

34.2

19

22

1CN-18-06

M18×1.5

Z3/8"×18

12

19.9

34.9

19

22

1CN-18-08

M18×1.5

Z1/2"×14

12

21.4

36.4

22

22

1CN-22-08

M22×1.5

Z1/2"×14

15

22.4

37.4

24

27

1CN-22-20

M22×1.5

Z1.1/4"×11.5

15

29.8

37.4

46

27

1CN-26-08

M26×1.5

Z1/2"×14

18

22.9

39.4

27

32

1CN-26-12

M26×1.5

Z3/4"×14

18

22.4

38.9

30

32

16

轻系列

L

1CN-30-08

M30×2

Z1/2"×14

22

24.4

40.5

32

36

1CN-30-12

M30×2

Z3/4"×14

22

24.4

40.9

32

36

1CN-36-16

M36×2

Z1"×11.5

28

29.8

46.3

41

41

1CN-36-20

M36×2

Z1.1/4"×11.5

28

31.3

46.3

46

41

1CN-45-20

M45×2

Z1.1/4"×11.5

35

30.3

51.8

46

50

1CN-52-20

M52×2

Z1.1/4"×11.5

42

31.8

55.8

55

60

1CN-52-24

M52×2

Z1.1/2"×
