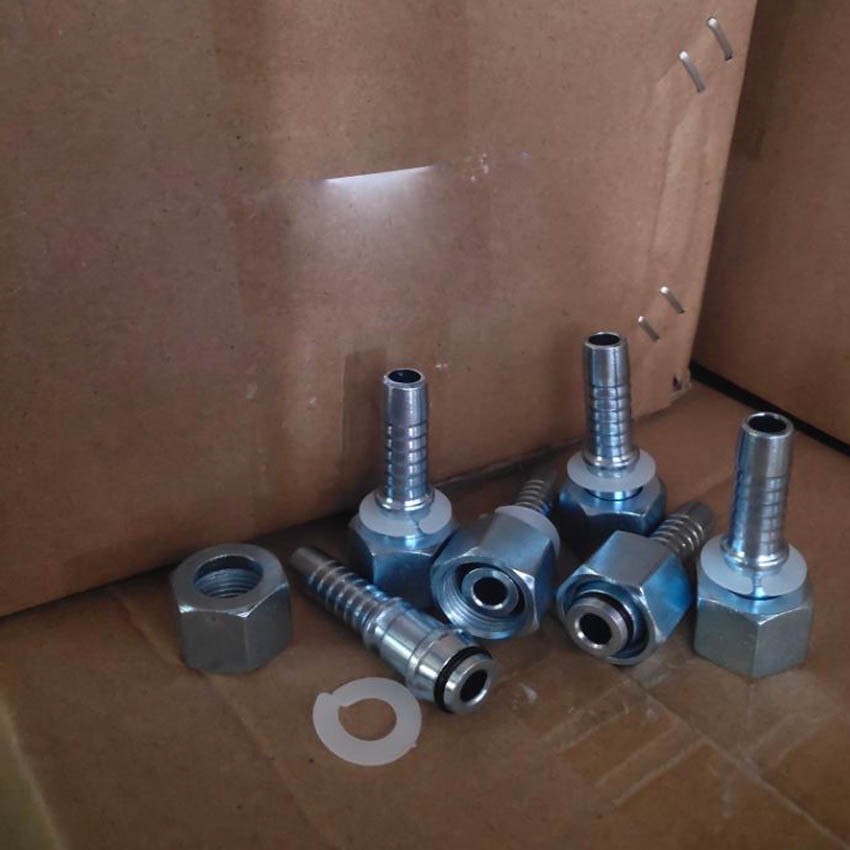

Metric Female 24°Cone O-ring L.T.

20411


代号 螺纹E O形圈 软管 HOSE BORE 尺寸 DIMENSIONS
PART NO. THREAD E O RING 公称内径DN 标号DASH A C S2
20411-12-04W M12X1.5 O04.5X1.5 6 4 22.5 1.4 17
20411-14-04W M14X1.5 O06.5X1.5 6 4 22.5 1.6 17
20411-14-06W M14X1.5 O06.5X1.5 10 6 23 1.6 17
20411-16-04T M16X1.5 O08.0X1.5 6 4 20.5 2 19
20411-16-05W M16X1.5 O08.0X1.5 8 5 22 2 19
20411-16-06W M16X1.5 O08.0X1.5 10 6 23.5 2 19
20411-18-05T M18X1.5 O10.0X1.5 8 5 24.5 1.5 22
20411-18-06T M18X1.5 O10.0X1.5 10 6 27.5 1.5 22
20411-18-08W M18X1.5 O10.0X1.5 12 8 24.5 1.5 22
20411-22-05T M22X1.5 O12.0X2.0 8 5 26.5 3 27
20411-22-06T M22X1.5 O12.0X2.0 10 6 26.5 3 27
20411-22-08T M22X1.5 O12.0X2.0 12 8 29 3 27
20411-26-10T M26X1.5 O15.0X2.0 16 10 30 2 32
20411-26-12W M26X1.5 O15.0X2.0 20 12 27.5 2 32
20411-30-10T M30X2 O20.0X2.0 16 10 31 4 36
20411-30-12T M30X2 O20.0X2.0 20 12 34 4 36
20411-36-12T M36X2 O26.0X2.0 20 12 33 4.5 41
20411-36-14T M36X2 O26.0X2.0 22 14 33 4.5 41
20411-45-16T M45X2 O32.0X2.5 25 16 37 4 50
20411-45-20T M45X2 O32.0X2.5 32 20 37.5 4 50
20411-52-20T M52X2 O38.0X2.5 32 20 38.5 4 60
20411-52-24T M52X2 O38.0X2.5 40 24 38.5 4 60
